Hi Temp 150.

[Runs on Figure 4 DLP]
HighTemp Flame Retardant


Save on Tooling Costs and Time with Direct Production of Flame-Resistant Plastic Parts

Figure 4 High Temp 150°C FR Black is a rigid, flame-retardant black material that can be used for production parts requiring UL94 V0 rating as well as FAR 25.853 and 23.853 capability. It provides long-term environmental stability with an injection molded-like surface quality.

This material is recommended for consumer, transportation, and aerospace applications that require performance at high temperatures like brackets, covers, and circuit board housings and covers.

Figure 4 High Temp 150°C FR Black is tested to 8 years of indoor and 1.5 years outdoor mechanical performance per ASTM D4329 and ASTM G194 methods, ensuring that printed parts remain functional and stable for long periods in real-world conditions.

Applications

  • Printed circuit board covers

  • Electrical and under-hood housings requiring UL94 V0 rating

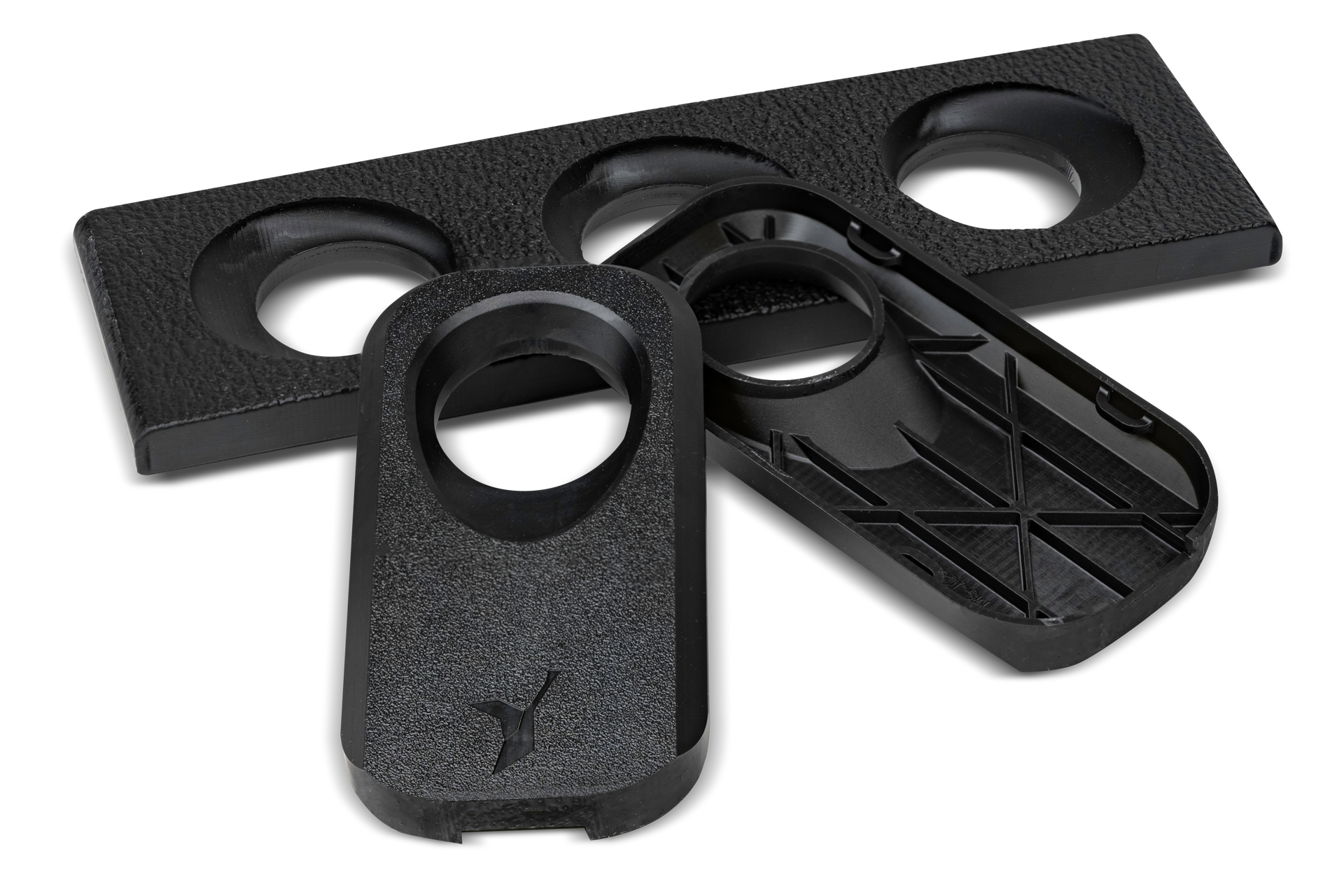

  • Rigid covers, hangers, and brackets

  • Small FAR 25/23.853 in-cabin parts

  • Flame retardant parts for trains and buses

Benefits

  • Self-extinguishing, flame-retardant material

  • Halogen-free

  • High heat deflection temperature for demanding applications

  • No secondary thermal cure required

  • Excellent surface quality, accuracy & repeatability

  • Capable of plating and painting

DOwnload data sheet >>>>

Features

  • Passes UL94 V0 test standards @ 2 mm and 3 mm thickness

  • Passes FAR Part 25.853 @ 12-second vertical burn and HB testing @ 3 mm thickness

  • Passes FAR Part 23.853 @ 12-second vertical burn and HB testing @ 3 mm thickness

  • Passes UL 746C GWIT and GWFI @ 2 mm and 3 mm thickness

  • >150C @ 0.455 MPa HDT

  • 2900 MPa flexural modulus

  • Long-term indoor and outdoor environmental stability of mechanical properties; tested out to 8 and 1.5 years (respectively) per ASTM methods

Figure 4 High Temp 150°C FR Black Datasheet
